RORO Equipment

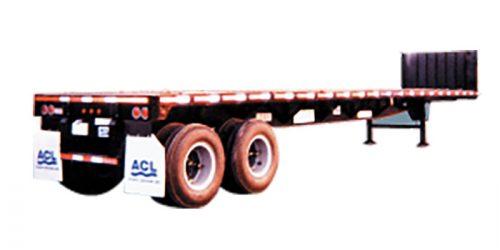

42′ Flatbed Trailer
| DIMENSIONS | LENGTH 42′ (12,802 mm) | WIDTH 8′ (2,428 mm) |
| PAYLOAD | GROSS WEIGHT 80,000lbs. (36,287 kg) | TARE 10,050lbs. (4,762 mm) |

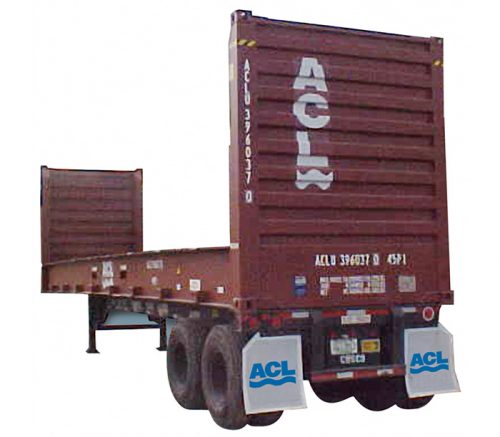

40′ Flatracks
| MENSIONS | LENGTH 40′ (12,202 mm) | WIDTH 8′ (2,438 mm) | HEIGHT 9’6″ (2,896 mm) | |
| INTERNAL DIMENSIONS | Length Between Headboards 38’9″ (11,642 mm) | Length Between Corner Posts 38’4″ (11,582 mm) | Width Overall Deck 7’9″ (2,374 mm) | Height 7’5 1/8″ (2,264 mm) |
| PAYLOAD | GROSS WEIGHT 110,231 lbs. (50,000 kg) | TARE 9,921 lbs. (4,500 kg) |

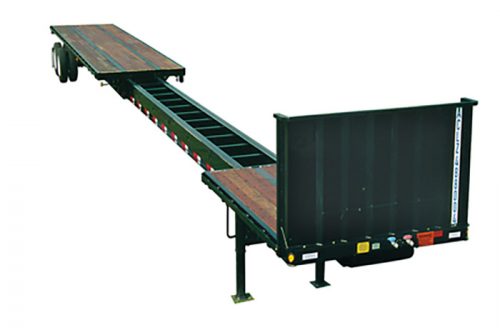

48′-80′ Extendible Flatbed Trailer
| DIMENSIONS | LENGTH CLOSED 48′ (14,630 mm) | LENGTH OPENED 80′ (24,384 mm) |
| PAYLOAD | GROSS WEIGHT 80,000 lbs. (36,287 kg) | TARE 16,500 lbs. (7,484 kg) |

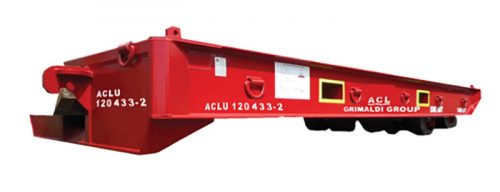

Roll Trailers
| TH | MAXIMUM PAYLOAD |
| 20′ | 20-60 tons |
| 30″ | 70-160 tons |
| 40′ | 80-130 tons |
| 50′ | 90-100 tons |
| 60′ | 60-120 tons |
| 62’* | 62-100 tons |
| 80′ | 120-150 tons |

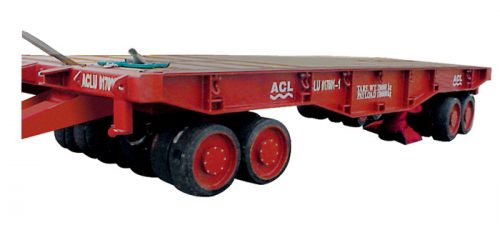

Heavy Duty Drawbar Roll Trailer
| LENGTH | MAXIMUM PAYLOAD |
| 26′ | 170 tons |
| 42′ | 220 tons |
